15", 400w, 100 dB, 8 ohms
- Nominal diameter (") 15
- Power Rating (W) 400
- Nominal impedance (ohms) 8
- Sensitivity (dB) 100
- Chassis type Cast
- Voice coil diameter (") 3
- Cone material Kevlar loaded paper
- Magnet type Neo

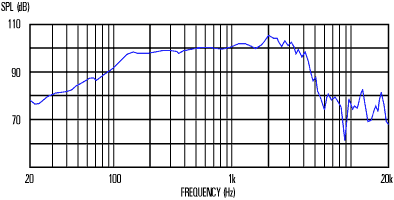

- Frequency range (Hz) 50-4000
- Resonance frequency, Fs (Hz) 48
- DC resistance, Re (ohms) 5.69
-
-
- Mounting Information
- Diameter (mm) 398
- Overall depth (mm) 160
- Magnet structure diameter (mm) 355
- Mounting slot dimensions (mm) 5.5
- Number of mounting slots 8
- Mounting slot PCD (mm) 378
- Unit weight (kg) 4.1
-
|
