10", 200w, 98 dB, 8 ohms
- Nominal diameter (") 10
- Power Rating (W) 200
- Nominal impedance (ohms) 8
- Sensitivity (dB) 98
- Chassis type Pressed steel
- Voice coil diameter (") 2 1/2
- Cone material Kevlar loaded paper
- Magnet type Ceramic

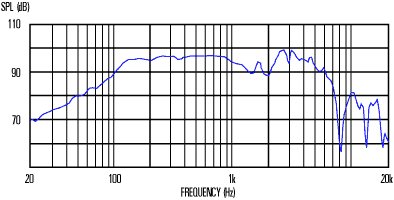

- Frequency range (Hz) 65-5000
- Resonance frequency, Fs (Hz) 65
- DC resistance, Re (ohms) 5.1
-
-
- Mounting Information
- Diameter (mm) 256
- Overall depth (mm) 110
- Magnet structure diameter (mm) 229
- Mounting slot dimensions (mm) 6 x 8
- Number of mounting slots 4
- Mounting slot PCD (mm) 245
- Unit weight (kg) 3.8
-
|
